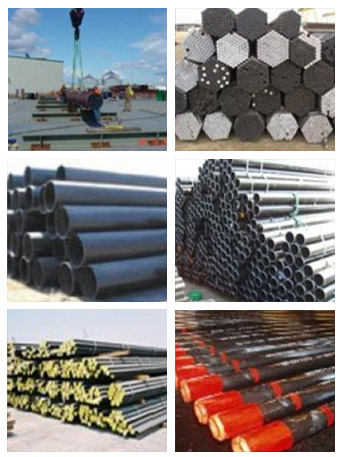

| MECHANICAL PRODUCTS - PIPES |
| |
| Carbon Steel |
| |
Carbon
Steel Seamless pipes for high Temperature
Services as per ASTM A 53/A106 Gr B /ASME
SA 53/SA106 Gr B / API 5L Gr B/X42 PSL 1
upto 24" OD (upto 10" available
in stock) |
| |
Carbon Steel Pipes
for Low Temperature Service as per ASTM
A 333 Gr 6 / ASME SA 333 G r 6/ API 5L Gr
X52 PSL 1 upto 24" OD |
| |
Carbon Steel ERW pipes as per ASTM A 53
Gr B / ASME SA 53 Gr B API Gr B/X42/X52 up
to 36" OD |
| |
Carbon Steel SAW pipes as per API 5L Gr
B/X42/X52/X60/X70 PSL 1/2 from 18" to
104" |
CS pipes
offered on Project basis with Epoxy, 3LPE,
3LPP, PU, CTE, GI Painting and coating,
Concreate Weight Coating and Liquid Epoxy
and Concrete lining as per DIN, BS, AWWA
and other international Standards. |
| Stainless Steel |
| |
½" to 10"(Seamless) ASTM A 312
TP 304/304L, 306/306L, 321, 347 & 904L
|
| |
8" to 24" (EFW) ASTM A358 TP 304/304L,316/316L,321,347
& 904L |
| Duplex / Super Duplex |
| |
½" to 8"(Seamless) ASTM A 790
|
| |
8" to 24" (EFW) ASTM A 928 |
| Alloy Steel pipes shall be offered
for total piping package requirements. |
Origin :
European, Korea, Japan, South Africa, China
and India |
|
|
 |
|
|
| Carbon & Alloy Steel |
 |
Carbon
Steel Pipes And Tubes
ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B &
C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 &
X 70. ASTM
/ ASME A 691 GR A, B & C
Alloy Steel Pipes And Tubes ASTM / ASME A 335 GR P 1,
P 5, P 9, P 11, P 12, P 22, P 23, P 91
ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR,
9CR, 91
|
|
 |
Chromalloy
is an abbreviation for "chromium-molybdenum
steel". Chromalloy is an alloy used to
produce tubing for bicycle frames and race-car
roll cages. It is not as lightweight as some
steel alloys, but has the advantages of high
tensile strength and malleability. It is also
easily welded and is considerably stronger and
more durable than standard (1020) steel tubing.
|
|
|
|
|
| Stainless & Duplex Steel |
Stainless Steel Pipes And
Tubes
ASTM / ASME SA 312 GR. TP 304, 304L, 304H, 309S, 309H,
310S, 310H, 316, 316TI, 316H, 316LN, 317, 317L, 321, 321H,
347, 347H, 904L. ASTM
/ ASME SA 358 CL 1 & CL 3 GR . 304, 304L, 304H,
309S, 309H, 310S, 310H, 316, 316H, 321, 321H, 47.
Duplex Steel Pipes And Tubes
ASTM / ASME SA 790 UNS NO S 31803, S 32205, S 32550,
S 32750, S 32760. |
| Nickel & Copper Alloy |
Nickel Alloy Pipes And Tubes
ASTM / ASME SB 163 UNS 2200 ( NICKEL 200 )
ASTM / ASME SB 163 UNS 2201 (NICKEL 201 )
ASTM / ASME SB 163 / 165 UNS 4400 (MONEL 400 )
ASTM / ASME SB 464 UNS 8020 ( ALLOY 20 / 20 CB 3 )
ASTM / ASME SB 704/705 UNS 8825 INCONEL (825)
ASTM / ASME SB 167 / 517 UNS 6600 (INCONEL 600 )
ASTM / ASME SB 167 UNS 6601 ( INCONEL 601 )
ASTM / ASME SB 704 /705 UNS 6625 (INCONEL 625)
ASTM / ASME SB 619/622/626 UNS 10276 ( HASTELLOY C 276
) Copper Alloy Pipes
And Tubes
ASTM / ASME SB 111 UNS NO. C 10100, 10200, 10300, 10800,
12000, 12200, 70600, 71500.
ASTM / ASME SB 466 UNS NO. C
70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30) |
| Steel Sheets, Plates & Coils |
|
We
offer highly customized steel plates, carbon steel coils,
carbon steel sheets to our customers and provide them
in different grades like, low carbon grade, high carbon
grade and straight grade that meets the specific requirements
of the clients. Stainless steel is the most ideal material
for plates and the only material that requires almost
no maintenance. Stainless steel is the least expensive
material and they never chip or corrode and hence last
forever.
Grade:
304, 304L, 304H, 316, 316L, 316LN, 316Ti, 309, 310S,
317L, 321, 347, 409, 410, 420, 430, 446 & 202
Sheet Finishing: 2B, 2D, HR, CR, BA (No. 8), Satin (Met
with Plastic Coated)
Sheet & Plate in Form of: Coils, Foils, Shim Sheet,
Perforated Sheet, Chequered Plate, Strip, Flats, Blank
(Circle), Ring (Flange) & Angle, Channel, Tray Etc.
Pipe Fittings Services: Heat Treatment, Annealing, Pickling,
Polish, Electroplating, Anodising, Rolling, Cutting,
Bending, Forging, Minor Fabrication Etc.
Test Certificate: Manufacturer Test Certificate / Laboratory
Test Certificate from Govt. Approved Lab. & Under
Third Party Inspection.
Size: Thickness: 0.1 mm to 48 mm, Width: 1000 mm to
2500 mm, Length: 2000 mm to Coil. |
| User Industries |
 |
Chemicals,
Fats, & Fertilizers, Sugar Mills & Distilleries,
Cement Industries, Ship Builders, Paper Industries,
Pumps, Petrochemicals, Oil & Natural Gas Organization
in terms of the specific materials, Technology,
Finance & Personal. |
|
|
| Carbon Steel Plates & Coils |
 |
Reliable
supplies heavy plates, alloy steel coils, carbon
steel coils, alloy steel sheets, hot rolled coils.
Both steel plate and hot rolled coils satisfy
the more important needs from a technological
and dimensional point of view.
Plate
Thickness :to a maximum of 200 mm;
Width : from 1250 mm to 2500 mm.
Coil
Thickness : to a maximum of 20 mm;
Width : up to a maximum 2000 mm
|
|
|
| Nickel Products (Pipes, Flanges
and Fasteners etc) |
We offer
an extensive range of nickel products that provide excellent
corrosion resistance and ultimate strength. These products
feature innovative design with accuracy in dimensions.
All our products correspond to national as well international
standards. Our extensive range of nickel products include
nickel pipes, nickel tubes, nickel sheets & plates,
nickel rod, nickel fitting, nickel flanges, etc. |
| Nickel Pipes |
 |
Our
range of nickel pipes are made from 99.6% pure
nickel, which imparts excellent mechanical &
magnetic properties. These pipes exhibit excellent
corrosion resistance in alkaline solutions such
as caustic soda. They also have outstanding resistance
against highly pure halogen gas and non- oxidizing
acids. We offer nickel pipe in standard as well
as custom made designs to suit the requirements
of different industries.
Specifications
Grades:
Nickel 200 (UNS No. N02200), Nickel 201 (UNS
No. N02201),Nickel 205 (UNS N02205) |
|
| Nickel Tubes |
 |
We
offer a wide range of nickel tubes that find application
in diverse industries for the purpose of fabrication.
These tubes feature excellent mechanical properties
such as tight tolerance and smooth surface finish.
Our range of nickel tubes can be easily welded
by either TIG or MIG process.
Specifications
Technical specification:
of ASTM B161/ASME SB161 and ASTM B163/ASME SB163
Grades:
Nickel 200(UNS02200), Nickel 201(UNS02201)
Size ranges: 4 to 219mm W. T.: 0.5 to 20mm
Length: Within 13500mm |
|
| Nickel Sheets & Plates |
 |
Our
range of nickel sheets & plates are known
for providing good mechanical properties over
a wide range of temperature and excellent resistance
to many corrosives, in particular hydroxides.
These sheets find major application in defense,
nuclear reactors, chemical industry, seawater
treatment, petrochemical, etc.
Specifications
Grades:
Nickel 200 (UNS No. N02200), Nickel 201 (UNS
No. N02201), Nickel 205 (UNS N02205) |
|
| Nickel Rod |
 |
Our
range of nickel rods are made from low carbon
nickel for high thermal stability. These rods
are also available in pure nickel for special
electrode applications. We offer high quality
nickel rods that comply with international standards
and specifications.
Specifications
Grades:
Nickel 200 (UNS No. N02200), Nickel 201 (UNS
No. N02201), Nickel 205 (UNS N02205) |
|
| Nickel Fittings |
 |
Our
comprehensive range of nickel fittings include
elbow, bends, tees, reducer, caps, stub ends,
etc. These fittings used in diverse industries
for assembly of machines, automobiles parts, pipe
connection, etc. We offer nickel fittings in both
custom made and standard nickel fitting based
on the requirements of the clients.
Specifications
Grades:
Nickel 200 (UNS No. N02200), Nickel 201 (UNS
No. N02201), Nickel 205 (UNS N02205) |
|
| Nickel Flanges |
 |
Our
range of nickel flanges are ideal for application
in diverse industry for high pressure and temperature
applications. These flanges are designed with
precision for easy installation. Apart from standard
flanges, we also offer custom designed nickel
flanges to meet the specific application requirements
of the customers.
Specifications
Types :
Socket Weld
Slip On
Blind
Lapped
Screwed
Weld Neck
Long Weld Neck
Reducing
Spectacle
Ring Joint
Grades :
Nickel 200 (UNS No. N02200), Nickel 201 (UNS
No. N02201), Nickel 205 (UNS N02205)
|
|
| Nickel Fasteners |
 |
We offer a comprehensive range of nickel fasteners
manufactured using advanced technology to guarantee
precision in design. These fasteners are widely
used for assembling various machines, parts
and components. Our range of nickel fasteners
can be customized as per drawings and specifications
provided by the clients.
Specifications :
Types :
Stud Bolts
Hex Bolts
Square Bolts
Hex Nuts
T-Head Bolts
Friction Grip Bolts
Structural Bolts
U-Bolts
J-Bolts
Tie Bolts
Eye Bolts
Foundation Bolts
Grades :
Nickel 200 (UNS No. N02200), Nickel 201 (UNS
No. N02201),Nickel 205 (UNS N02205)
|
|
|
| |
| |
| |
|
